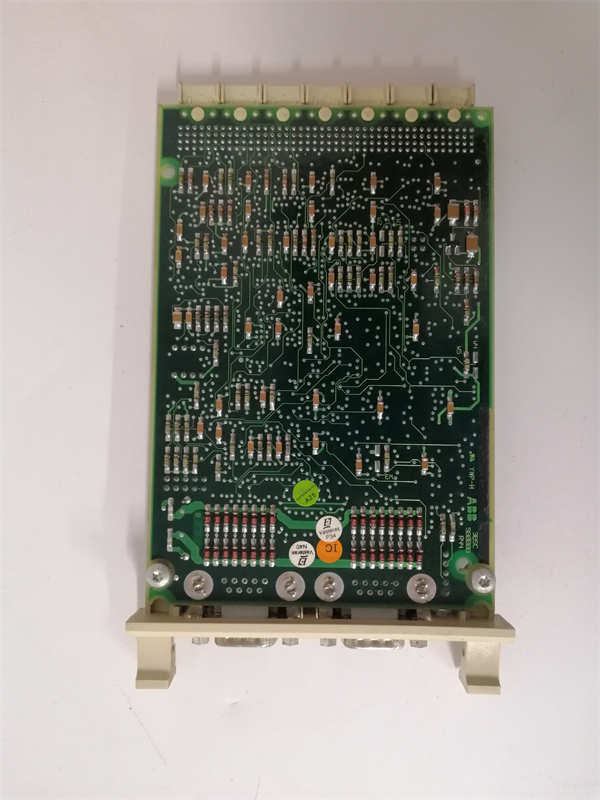

ABB CI534V02 3BSE010700R1 – Redundant Serial Communication Interface for AC 800M DCS

Description

Product Introduction

The ABB CI534V02 (3BSE010700R1) is a dual-channel, high-reliability serial communication interface designed for the ABB AC 800M programmable automation controller (PAC). As a key enabler of legacy and third-party device integration, this module provides two electrically isolated RS-485/RS-422 ports that support industry-standard protocols—most notably Modbus RTU/ASCII and ABB’s proprietary MasterBus 300—allowing seamless connectivity to a wide range of field equipment such as power meters, protective relays, variable frequency drives (VFDs), older PLCs, and remote terminal units (RTUs).

Engineered for continuous operation in demanding industrial settings, the CI534V02 is commonly deployed in power generation, water/wastewater, mining, and process industries where serial communication remains essential due to installed base constraints or protocol simplicity. Its compatibility with redundant AC 800M controllers ensures uninterrupted data exchange in critical control loops, while full integration into System 800xA enables centralized monitoring, alarm handling, and diagnostics—turning legacy serial devices into visible, manageable assets within a modern DCS architecture.

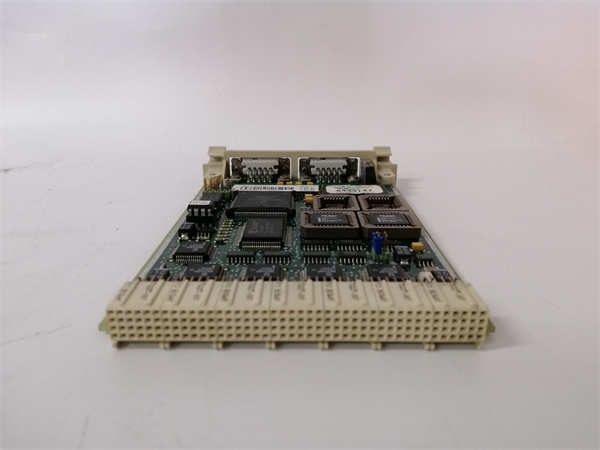

ABB CI534V02 3BSE010700R1

Core Advantages and Technical Highlights

Dual independent, isolated channels:
Each of the two ports on the CI534V02 operates independently—supporting different protocols, baud rates, and device types simultaneously (e.g., Port 1: Modbus RTU to a power meter at 19.2 kbps; Port 2: MasterBus 300 to an ABB excitation system at 38.4 kbps). This eliminates the need for external protocol gateways.

Deep System 800xA integration:
In Control Builder M, each serial channel is configured using built-in function blocks (e.g., MB300_COM, MODBUS_RTU). Data points from connected devices appear natively in the 800xA asset structure, enabling HMI visualization, trending, and alarm management without custom scripting.

Robustness for industrial environments:
With 500 VDC isolation, surge protection, and support for long cable runs, the CI534V02 reliably operates in electrically noisy plants (e.g., near switchgear or large motors). The module also supports automatic direction control for RS-485 half-duplex networks—simplifying wiring.

Redundancy and lifecycle support:
When paired with redundant PM866A CPUs, the CI534V02 participates in seamless failover—ensuring continuous communication during controller switchover. ABB’s long-term product support policy makes this module a safe choice for systems requiring 15–20 year lifespans.

Typical Application Scenarios

In thermal and hydroelectric power plants, the CI534V02 connects AC 800M controllers to generator protection relays (e.g., SEL-351), excitation systems (via MasterBus 300), and revenue-grade power meters (via Modbus RTU)—enabling real-time monitoring of voltage, current, and breaker status within 800xA.

In water treatment facilities, it integrates legacy SCADA RTUs and ultrasonic flow meters across pump stations located kilometers apart, using RS-485 multidrop networks. In mining operations, the module communicates with conveyor drive inverters (e.g., ABB ACS800) for speed setpoint and fault reporting, even in high-vibration, dust-laden enclosures.

In oil & gas terminals, the CI534V02 links to custody transfer meters and compressor PLCs that only support serial interfaces—bridging them into a unified safety and process control system. Its deterministic polling and retry mechanisms ensure data integrity even under intermittent communication faults.

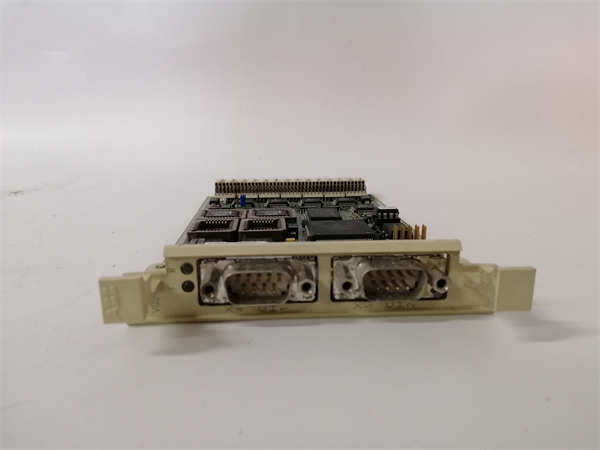

ABB CI534V02 3BSE010700R1

Related Model Recommendations

• ABB CI532: Single-channel version of serial interface (older, less flexible)
• ABB CI534V01: Predecessor to V02; similar but with minor firmware/hardware differences
• ABB CI541V1: Ethernet-based serial server (Modbus TCP gateway)—use when migrating to IP
• ABB TB510 / TB520: Required terminal bases for mounting CI534V02 in remote I/O racks
• ABB PM864A / PM866A: AC 800M CPUs that host and communicate with the CI534V02
• ABB DI810 / AI810: Digital/analog I/O modules often co-installed in same I/O station
• SEL-2030 / Modbus Gateway: External devices sometimes replaced by direct CI534V02 integration

Installation, Commissioning and Maintenance Instructions

Installation preparation:
Mount the CI534V02 in a grounded DIN rail using a compatible base (e.g., TB510). Use shielded twisted-pair cable (e.g., Belden 9841) for RS-485, with shield grounded at one end only. Terminate both ends of the bus with 120 Ω resistors if segment exceeds 50 m. Ensure baud rate and parity settings match the slave device.

Commissioning steps:

1. In Control Builder M, add the CI534V02 to the hardware tree.
2. Assign communication parameters (baud, parity, stop bits) per channel.
3. Insert protocol-specific function blocks (e.g., MODBUS_RTU_MASTER) in the application logic.
4. Map received data to process variables and test read/write operations online.
5. Enable diagnostics (e.g., CRC errors, timeout counters) for proactive monitoring.

Maintenance suggestions:
Periodically verify signal quality with an oscilloscope if communication errors increase. Clean terminal blocks annually in corrosive environments. Store spares in anti-static packaging at room temperature. Avoid hot-swapping unless your I/O base explicitly supports it.
