Description
The Bently Nevada 289761-01-1 is a vibration monitoring module from GE’s Bently Nevada product line, designed for machinery protection and condition monitoring applications. This specialized module serves as a critical component in predictive maintenance systems, providing continuous monitoring of vibration parameters for rotating equipment such as turbines, compressors, and pumps in industrial facilities.
Application Scenarios
In a gas turbine power generation facility, the Bently Nevada 289761-01-1 module continuously monitors vibration levels on the main turbine bearings. The module receives signals from proximitor sensors measuring shaft relative vibration, processing this data in real-time to detect abnormal vibration patterns. When vibration levels approach dangerous thresholds, the module triggers alarms to the control system, allowing operators to take preventive action before catastrophic failure occurs. The module’s precise monitoring capability enables early detection of imbalance, misalignment, or bearing wear, supporting predictive maintenance strategies that reduce unplanned downtime.

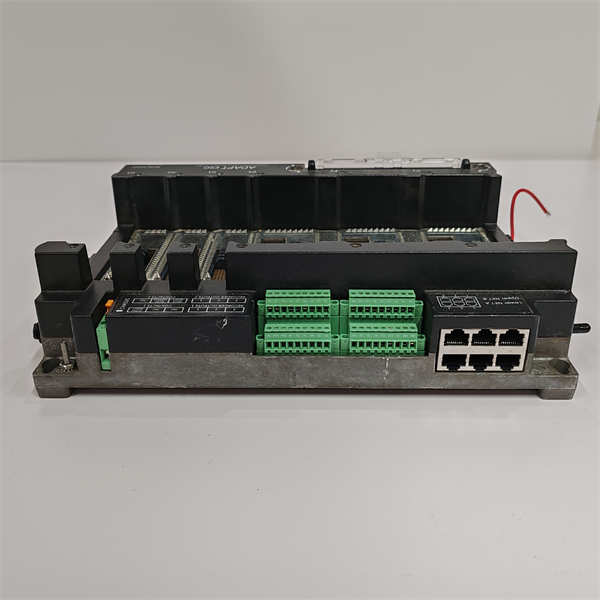

Bently Nevada 289761-01-1
Core Parameters
| Main Parameter | Value/Description |
| Product Model | 289761-01-1 |
| Manufacturer | Bently Nevada (GE) |
| Product Category | Vibration Monitoring Module |
| Compatible System | Bently Nevada 3500 Series |
| Input Channels | Typically 2 vibration input channels |
| Input Signals | Accepts proximitor, seismic, or velocity sensor inputs |
| Measurement Parameters | Vibration amplitude, phase, gap voltage |
| Alarm Settings | Programmable alert and danger setpoints |
| Output Signals | 4-20mA analog outputs, relay contacts |
| Power Supply | Backplane powered from 3500 rack |
| Operating Temperature | Industrial range: -30°C to +65°C |
Technical Principles and Innovative Value
Innovation Point 1: Advanced Signal Processing – The 289761-01-1 incorporates sophisticated digital signal processing algorithms that accurately extract vibration characteristics from raw sensor data. The module can distinguish between normal operational vibrations and potentially dangerous abnormal patterns, providing reliable early warning of machinery issues.Innovation Point 2: Integrated Dynamic Data Capture – The module features built-in capabilities for capturing dynamic vibration data during transient events such as machine startup and shutdown. This functionality enables comprehensive machinery analysis and helps identify issues that may not be apparent during steady-state operation.Innovation Point 3: Smart Sensor Diagnostics – The module continuously monitors sensor health and wiring integrity, detecting faults such as open circuits, short circuits, or degraded sensor performance. This proactive diagnostic capability ensures the monitoring system remains reliable and reduces false alarms.
Application Cases and Industry Value
Case: Refinery Centrifugal Compressor ProtectionA petroleum refinery implemented a comprehensive machinery protection system using Bently Nevada 3500 series frames with 289761-01-1 vibration modules for critical centrifugal compressors.
- Application Process: The 289761-01-1 modules were configured to monitor vibration on compressor bearings, with alert and danger setpoints established based on API standards and historical operating data.
- Improvements: The system detected early-stage bearing wear on a synthesis gas compressor, allowing planned shutdown before failure. This prevented an estimated 14-day production loss and potential equipment damage exceeding $2 million.
- User Feedback: The reliability engineer reported, “The 289761-01-1 modules provided the sensitivity and reliability we needed for our critical compressor protection. The early detection capability saved us from a major unplanned shutdown and significant repair costs.”

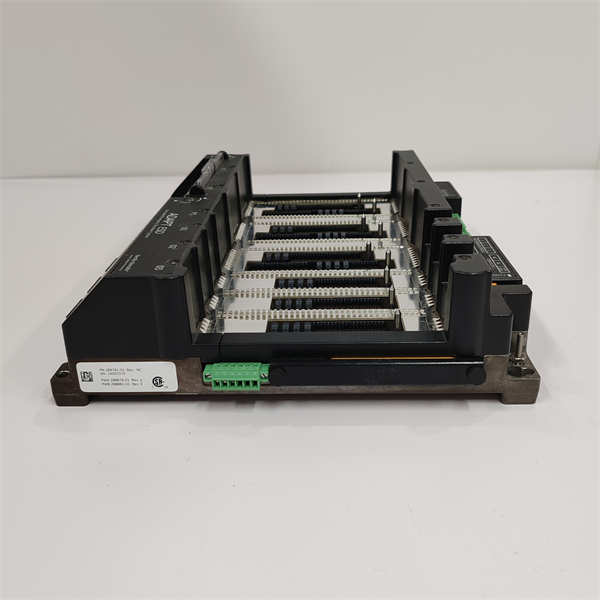

Bently Nevada 289761-01-1
Related Product Combination Solutions
A complete machinery protection system includes these complementary Bently Nevada products:
- 3500/15 – Power supply module for system operation
- 3500/22 – Transient data interface for advanced analysis
- 3300 Series Sensors – Proximity probes and seismic transducers
- 3500 Software – Configuration and monitoring software
- System 1 – Plant-wide monitoring and diagnostic software
Installation, Maintenance, and Full-Cycle Support
Installation and Commissioning: The 289761-01-1 module requires installation in a compatible Bently Nevada 3500 series rack. Installation includes proper module seating, sensor wiring verification, and configuration using dedicated software tools. Commissioning involves sensor calibration, setpoint establishment, and functional testing to ensure proper operation.Maintenance and Support: Regular maintenance includes periodic verification of calibration, review of setpoints, and examination of historical data trends. Bently Nevada provides comprehensive technical documentation, training programs, and global support services to ensure system reliability throughout its operational lifecycle.
