GE IS215UCVEH2AE module – fault diagnosis upgrade, precise output for complex working conditions! ​

The GE IS215UCVEH2AE is a high-performance, dual-channel Universal Control Valve Output Module designed for the GE Mark VIe digital turbine control system. It delivers precision analog signals to drive servo valves in electro-hydraulic (EH) fuel, steam, and variable geometry control systems used in gas and steam turbines.

Description

Product Model IS215UCVEH2AE
Manufacturer GE (General Electric)
Product Category Universal Control Valve Output Module (Analog Servo Driver)
Platform Compatibility GE Mark VIe Turbine Control System
Function Type Dual-channel analog output for electro-hydraulic servo valve control
Number of Channels 2 independent servo output channels
Output Signal Range ±10 VDC (standard, configurable)
Output Current Capacity Up to ±100 mA per channel
Load Impedance 100 Ω to 10 kΩ
Resolution 16-bit DAC (Digital-to-Analog Converter)
Accuracy ±0.1% of full scale
Update Rate 10 ms (100 Hz) typical – synchronized with Mark VIe control scan rate
Feedback Input Support Accepts ±10 VDC (LVDT) or 4–20 mA (position transmitter) feedback signals
Isolation Voltage 2500 VAC RMS (channel-to-backplane, channel-to-channel)
Backplane Interface VMEbus – Compatible with VPBC, VTUR, AEBI chassis
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity Tolerance 5% to 95% RH, non-condensing
Status Indicators RUN, FLT, CH1, CH2 LEDs for real-time operational feedback
Configuration & Diagnostics GE ToolboxST software for setup, calibration, and monitoring
Terminal Board Compatibility IS215UCVAH2AEDIS215UCVAH2AEE, or equivalent terminal assembly

Product introduction

The GE IS215UCVEH2AE is a high-performance, dual-channel Universal Control Valve Output Module designed for the GE Mark VIe digital turbine control system. It delivers precision analog signals to drive servo valves in electro-hydraulic (EH) fuel, steam, and variable geometry control systems used in gas and steam turbines.

As a core component in turbine actuation systems, the IS215UCVEH2AE generates ±10 VDC output signals to modulate hydraulic actuators that control critical components such as:

  • Fuel Control Valves (GCV, SRV, VGV)
  • Steam Control Valves (CV, IV)
  • Inlet Guide Vanes (IGVs)
  • Variable Stator Vanes (VSVs)

Each of the two channels supports closed-loop control, accepting feedback from LVDTs (Linear Variable Differential Transformers) or 4–20 mA position transmitters to ensure accurate valve positioning. This feedback integration allows the module to dynamically correct for drift, hysteresis, or load disturbances—ensuring stable and safe turbine operation across all phases, from startup to full load.

The IS215UCVEH2AE is typically installed in VPBC (Processor and I/O Chassis) or VTUR (Turbine Control Chassis), where it interfaces with the main control processors (e.g., IS200TVPx) via the VMEbus. It executes control algorithms for speed regulation, load following, temperature control, and emergency shutdown sequences, making it essential for both performance and safety.

While functionally very similar to earlier variants like IS215UCVEH2AB, the IS215UCVEH2AE may represent a later revision with potential improvements in firmware, component sourcing, or EMI filtering—common in GE’s obsolescence management strategy for long-life control systems.

Core advantages and technical highlights

High-precision, closed-loop servo control

Equipped with 16-bit DACs and precision amplifiers, the IS215UCVEH2AE delivers highly accurate ±10 VDC output with ±0.1% full-scale accuracy. Combined with real-time feedback comparison, it ensures minimal position error, critical for emissions compliance and combustion stability in gas turbines.

Dual-channel redundancy and flexibility

The two independent channels support:

  • Redundant control of a single critical valve (for fault tolerance)
  • Simultaneous control of two separate valves (e.g., split fuel nozzles or dual steam valves)
  • Flexible configuration via ToolboxST for different valve types and response characteristics

Galvanic isolation for enhanced reliability

Each channel is isolated at 2500 VAC RMS from the backplane and from each other, protecting the control system from ground loops, voltage transients, and electrical noise—common in high-power industrial environments with large motors and switching loads.

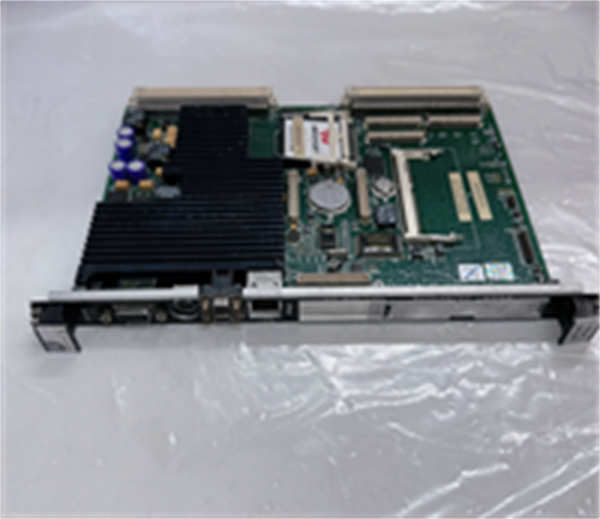

IS215UCVEH2AE GE

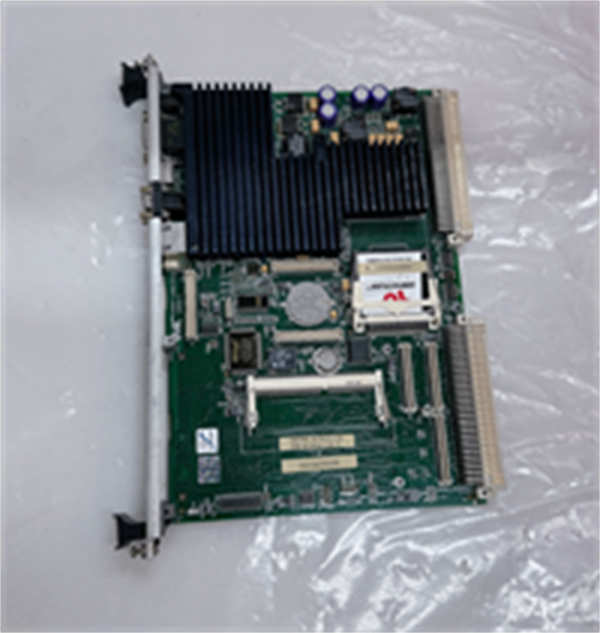

IS215UCVEH2AE GE

Seamless integration with Mark VIe ecosystem

The IS215UCVEH2AE operates as a native VMEbus device, exchanging data with:

  • TVP(Turbine Control Processor) for control logic execution
  • SAMB(Service and Maintenance Board) for event logging and diagnostics
  • UCVI(Universal Control Valve Input) modules for centralized feedback acquisition

It is fully configurable using GE ToolboxST, allowing engineers to set scaling, filtering, alarm thresholds, and override logic.

Advanced diagnostics and status monitoring

Front-panel LEDs provide immediate visual status:

  • RUN: Steady green = normal operation
  • FLT: Red = internal fault or communication loss
  • CH1 / CH2: Blinking = output activity; steady red = channel fault

Internal diagnostics continuously monitor:

  • Output signal integrity
  • Feedback signal validity (e.g., LVDT open/short)
  • Communication status with control processor
  • Overcurrent or thermal faults

Diagnostic data is logged in the SAMB for predictive maintenance and post-event analysis.

Hot-swap capable for minimal downtime

The IS215UCVEH2AE supports hot-swap replacement in redundant configurations, allowing field replacement without shutting down the turbine or control system—maximizing plant availability.

Typical application scenarios

Power generation (Combined-cycle & Simple-cycle plants)

Controls fuel gas control valves (GCVs), pressure control valves (SRVs), and inlet guide vanes (IGVs) on GE 6B, 7FA, 9E, and 9FB gas turbines. Ensures smooth acceleration, stable load following, and fast fuel shutoff during trips.

Oil & Gas – Pipeline compression

Used in gas turbine-driven compressors to regulate fuel flow and surge control valves. Its fast response and closed-loop accuracy help maintain process stability and prevent compressor stall.

Industrial steam turbines

Manages steam admission valves in refineries, chemical plants, and cogeneration units. Enables precise speed and extraction pressure control, especially in applications with variable steam demand.

Retrofit and control system upgrades

Commonly used during Mark V to Mark VIe migrations, where the IS215UCVEH2AE replaces legacy analog output systems, providing modern, software-configurable valve control with improved diagnostics and reliability.

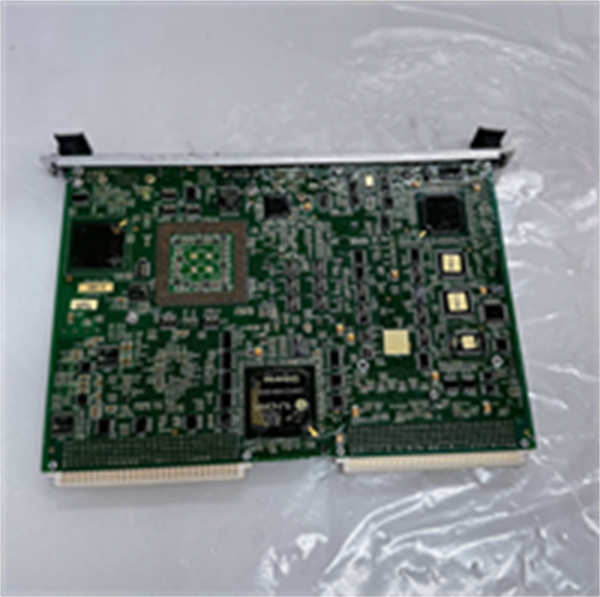

IS215UCVEH2AE GE

IS215UCVEH2AE GE

Related model recommendations

Model Number Function Description
IS215UCVIH2Axx Universal Control Valve Input Module – Reads LVDT/4–20 mA feedback; pairs with IS215UCVEH2AE
IS200TVPxHxCx Mark VIe Main Control Processor – Executes control logic and sends commands
IS210SAMBH2AA Service & Maintenance Board – Logs alarms, events, and diagnostic data
IS215UCVAH2AED/AEE Terminal Board Assembly – Provides field wiring interface for IS215UCVEH2AE
IS210VPBCH2BMD BPP Control Chassis – Common housing for IS215UCVEH2AE and other I/O
IS215TVDOH1A Discrete Output Module – Controls solenoid valves, trip relays
IS215LVDAH1AED Dedicated LVDT Interface Module – For high-density position sensing

Installation, commissioning and maintenance instructions

Installation

  1. Ensure the chassis (VPBC/VTUR) is powered down if hot-swap is not supported.
  2. Install thecorrect terminal board (IS215UCVAH2AED or AEE) in the I/O rack.
  3. Insert theIS215UCVEH2AE firmly into the designated VMEbus slot until fully seated.
  4. Secure with retention screws.
  5. Connect shielded, twisted-pair cables for servo output and feedback signals. Maintain separation from power and discrete I/O wiring.

Commissioning

  1. Power up the chassis and verifyRUN LED is steady green.
  2. UseToolboxST to:
  • Confirm module recognition
  • Configure output range, feedback type, and scaling
  • Set alarm thresholds (e.g., feedback loss, output saturation)
    1. Perform avalve stroke test or bump test to verify full travel and linearity.
    2. Calibrate using a reference meter or known position points.

Maintenance

  • Monthly: Check LED status and event logs in SAMB.
  • Annually: Inspect terminal connections for tightness and corrosion.
  • As needed: Replace only if diagnostics confirm failure. Typical service life exceeds 15 years.
