Description
| Product Model | IS220PDIAH1B |
| Manufacturer | GE (General Electric) |
| Product Category | Parallel I/O Module (Digital Input/Output) |
| Compatible System | Mark VIe Turbine Control System |
| Function Type | Configurable Digital Input (DI) / Digital Output (DO) |
| Number of Channels | 32 Channels (Configurable per application) |
| Voltage Level | 125 V DC (Typical) |
| Isolation | Channel-to-channel and channel-to-ground optical isolation |
| Safety Certification | SIL 2 (per IEC 61508) |
| Installation Method | Front-loadable card for Mark VIe chassis |
| Hot-Swap Support | Yes (Supported in redundant systems) |
| Communication Interface | RISC processor with Ethernet backplane communication |
| Operating Temperature | 0 °C to 55 °C (32 °F to 131 °F) |
| Standards Compliance | IEC 61000 (EMC), IEEE 488, UL, CSA |
Product Introduction
The GE IS220PDIAH1B is a high-integrity parallel digital input/output (I/O) module designed specifically for use in GE’s Mark VIe distributed control system (DCS), which is widely deployed in power generation facilities, particularly gas and steam turbine control applications. As a key component of the Mark VIe architecture, the GE IS220PDIAH1B provides reliable signal interfacing between the turbine control logic and field devices such as emergency stop buttons, valve position indicators, relay outputs, and alarm systems.
Engineered for mission-critical environments, the GE IS220PDIAH1B supports both digital input and output functions and can be configured through software to meet specific application requirements. It operates within GE’s Triple Modular Redundant (TMR) or dual redundant control frameworks, ensuring continuous operation even in the event of a single module or channel failure. This makes the GE IS220PDIAH1B an essential element in safety-critical control strategies, including turbine startup sequences, protective shutdowns, and process interlocks.
The module features robust electrical isolation, advanced diagnostics, and seamless integration with the Mark VIe controller via a high-speed Ethernet backplane. Its front-loadable design allows for easy installation and replacement without disrupting adjacent components, minimizing downtime during maintenance or upgrades.

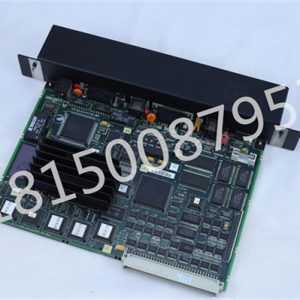

GE IS220PDIAH1B
Core Advantages and Technical Highlights
Triple Modular Redundancy (TMR) Compatibility
The GE IS220PDIAH1B is fully compatible with GE’s TMR architecture, where three independent control channels vote on input signals and synchronize output commands. This fault-tolerant design ensures that transient errors or hardware failures in one channel do not affect overall system performance, significantly enhancing reliability and safety in power plant operations.
Flexible Configuration and High Channel Density
With 32 configurable digital channels, the GE IS220PDIAH1B offers exceptional flexibility for diverse control applications. Engineers can assign individual channels as inputs or outputs based on system needs, reducing the need for multiple dedicated I/O modules. This high level of integration simplifies system design, reduces panel space requirements, and lowers total installation costs.
Advanced Diagnostics and Real-Time Monitoring
Each channel on the GE IS220PDIAH1B includes built-in diagnostic circuitry that continuously monitors for open circuits, short circuits, and voltage anomalies. These diagnostics are reported in real time to the Mark VIe ControlST software, enabling operators and maintenance personnel to proactively identify and address potential issues before they lead to system faults or unplanned shutdowns.
Typical Application Scenarios
The GE IS220PDIAH1B is predominantly used in gas turbine control systems, particularly for GE 7FA, 9E, and 9F class turbines found in combined cycle and simple cycle power plants. In these environments, the module plays a critical role in monitoring discrete safety signals such as fire detection alarms, lube oil pressure switches, bearing vibration trips, and manual ESD (Emergency Shutdown) pushbuttons.
It also drives critical output functions, including trip solenoid activation, auxiliary pump start commands, and status indication to DCS/SCADA systems. Due to its SIL2 certification, the GE IS220PDIAH1B is trusted in safety instrumented functions (SIFs) that protect both personnel and multi-million-dollar turbine assets.
Beyond power generation, the GE IS220PDIAH1B is also utilized in industrial cogeneration units, offshore platforms, and large-scale mechanical drive applications where dependable, real-time digital I/O processing is essential. Its ability to operate reliably under continuous thermal cycling, electrical noise, and mechanical vibration makes it a cornerstone of modern turbine control reliability.
Related Model Recommendations
- IS220UCVAH1A: Universal Analog I/O Module for Mark VIe; complements theGE IS220PDIAH1B by handling 4–20 mA and thermocouple signals.
- IS200TVPDH2A: High-Density Discrete I/O Module; suitable for applications requiring more than 32 digital points.
- IS220PBUCH1A: Power Supply Unit for Mark VIe Chassis; provides regulated power to theGE IS220PDIAH1B and other I/O cards.
- IS200TRCCH1B: Terminal Base Assembly; used withGE IS220PDIAH1B to connect field wiring via removable terminal blocks.
- ControlST & ToolboxST: GE’s official engineering software suite; essential for configuring, programming, and diagnosing theGE IS220PDIAH1B within the Mark VIe environment.
GE IS220PDIAH1B
Installation, Commissioning and Maintenance Instructions
Installation Preparation: Before installing the GE IS220PDIAH1B, ensure the Mark VIe chassis is powered down (unless hot-swap is enabled in a redundant system). Align the module with the guide rails and insert it firmly into the designated slot until the connectors are fully seated. Secure with the front mounting screw. Connect field wiring through the corresponding terminal base (e.g., IS200TRCCH1B), ensuring proper wire gauge and torque specifications are followed.
Commissioning: Use GE’s ToolboxST software to verify module recognition, configure channel functions (DI/DO), and assign signal names. Perform loop checks and functional tests to confirm correct signal transmission. Validate redundancy and voting logic in TMR systems. Update firmware if required to ensure compatibility with the controller.
Maintenance: Conduct periodic visual inspections for loose connections or signs of overheating. Monitor diagnostic logs in ControlST for early warnings. Clean air filters and ensure adequate cooling around the I/O cabinet. Replace the module only with an identical or approved upgraded model to maintain system certification.
