Description
| Product model | ICS TRIPLEX T9432 |
| Manufacturer | ICS Triplex (now part of Honeywell) |
| Product category | 32-channel analog input module (safety-critical applications) |
| Input channels | 32 isolated analog input channels |
| Input range | -10 V to +10 V |
| Sampling rate | 1,000 samples per second (SPS) |
| Resolution | 16-bit ADC |
| Communication protocol | Triconex Triple Modular Redundancy (TMR) architecture |
| Environmental requirements | Operating temperature: -40°C to +70°C; Storage temperature: -55°C to +85°C |
| Power supply | 24 V DC (isolated) |
| Installation method | DIN rail or rack mount in ICS Triplex safety systems |
| Diagnostic coverage | Comprehensive diagnostics for power, input channels, and internal circuits |
| Redundancy architecture | Triple-channel independent sampling with voting logic |
Product Introduction
The ICS TRIPLEX T9432 is a high-precision, safety-critical analog input module designed for industrial automation systems requiring redundancy and fault tolerance. As part of the ICS Triplex safety product series, it employs a triple-channel architecture to ensure continuous operation even in the event of partial hardware failures.
This module is engineered for environments where process stability and data accuracy are paramount, such as chemical plants, power generation, and pharmaceutical manufacturing. The ICS TRIPLEX T9432 features 16-bit resolution and a 1,000 SPS sampling rate, enabling precise measurement of dynamic signals from sensors, transducers, or other analog sources. Its -10 V to +10 V input range ensures compatibility with a wide array of field devices.
The ICS TRIPLEX T9432 integrates advanced diagnostic capabilities, including real-time monitoring of power supplies, input channels, and internal circuitry. This ensures early fault detection and minimizes unplanned downtime. Compatible with ICS Triplex Triconex engineering tools, it supports seamless configuration and integration into safety instrumented systems (SIS) and emergency shutdown (ESD) applications.

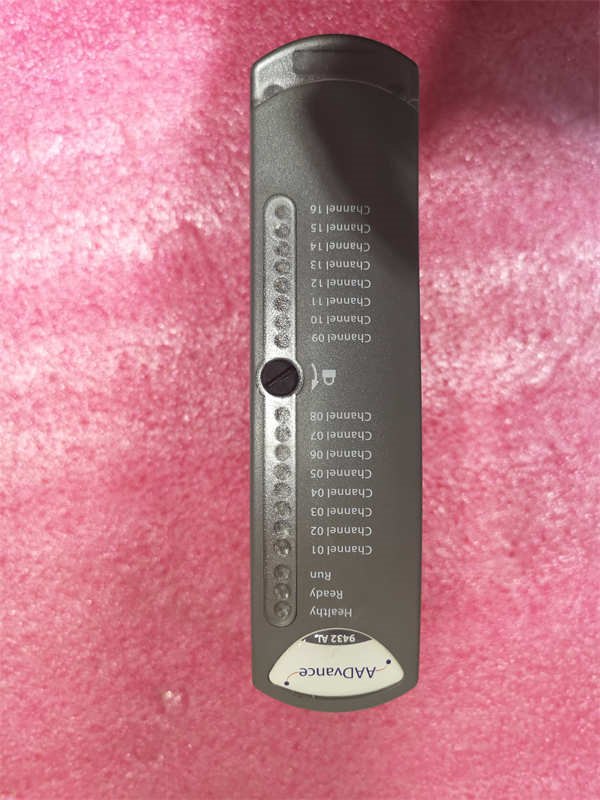

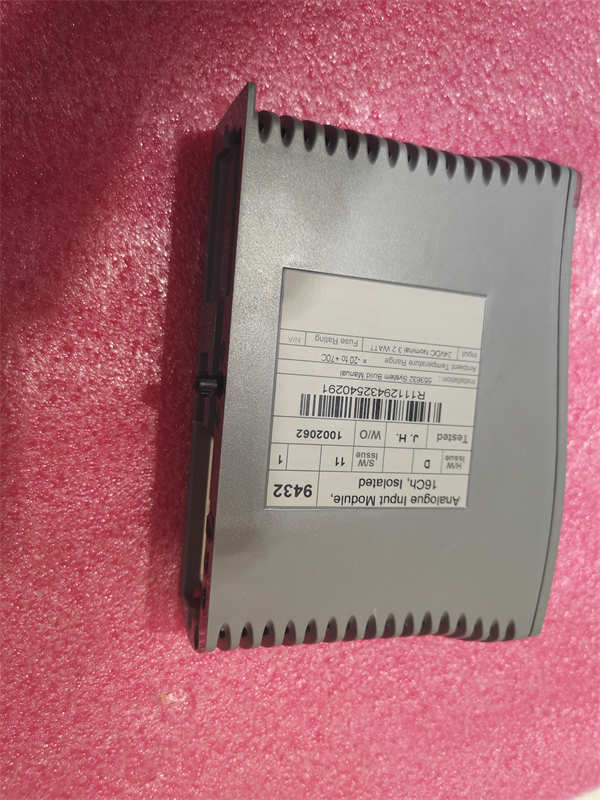

ICS TRIPLEX 9432
Core Advantages and Technical Highlights
Triple Modular Redundancy (TMR)
The ICS TRIPLEX T9432 utilizes a triple-channel design, where each channel independently samples and processes signals. A voting logic algorithm compares the three channels and outputs the majority value, ensuring reliable operation even if one or two channels fail. This architecture meets SIL 3 safety integrity levels for critical applications.
High Precision and Dynamic Performance
With 16-bit resolution and a 1,000 SPS sampling rate, the ICS TRIPLEX T9432 captures fast-changing signals without data loss. Its wide -10 V to +10 V input range accommodates diverse sensor types, from pressure transmitters to temperature probes.
Robust Diagnostics and Fault Tolerance
The module includes comprehensive diagnostics for power supply, signal integrity, and internal health checks. Features like self-calibration and overvoltage protection enhance long-term reliability. The triple isolation between channels prevents cross-talk and electromagnetic interference (EMI), ensuring signal purity in harsh environments.
Seamless Integration and Scalability
Designed for ICS Triplex systems, the ICS TRIPLEX T9432 works with Triconex engineering workstations (TEW) for easy configuration. It supports Modbus, HART, and proprietary protocols, enabling interoperability with third-party devices. The module’s DIN rail mounting and compact design allow flexible deployment in control cabinets.
Typical Application Scenarios
The ICS TRIPLEX T9432 excels in industries where process safety and precision are critical:
- Oil & Gas: Monitoring pressure, temperature, and flow in pipelines and offshore platforms.
- Chemical Processing: Real-time measurement of pH levels, viscosity, and reaction rates in reactors.
- Power Generation: High-accuracy voltage and current monitoring in turbine and generator systems.
- Pharmaceuticals: Ensuring precise dosing and mixing in sterile production lines.
- Water Treatment: Tracking turbidity, chlorine levels, and flow rates in municipal and industrial water systems.
Its triple redundancy and SIL 3 compliance make it ideal for safety instrumented systems (SIS) and emergency shutdown (ESD) applications.
Related Model Recommendations
- ICS TRIPLEX T9431C: Analog output module for 32-channel precision control in safety systems.
- ICS TRIPLEX T8431C: Digital input module for discrete signal acquisition in safety-critical environments.
- ICS TRIPLEX T8451: Digital output module for redundant control of solenoids, valves, and relays.
- ICS TRIPLEX T9451: Analog input/output module with dual-channel redundancy for hybrid I/O needs.
- Triconex TEW (Triconex Engineering Workstation): Configuration and diagnostics software for ICS Triplex modules.
ICS TRIPLEX 9432
Installation, Commissioning, and Maintenance Instructions
Installation preparation
- Mount the ICS TRIPLEX T9432in a DIN rail or ICS Triplex rack, ensuring proper ventilation and grounding.
- Connect analog sensors to the -10 V to +10 V input terminals, using shielded cables to minimize noise.
- Configure the module using Triconex TEW software, setting up input ranges, scaling factors, and diagnostic thresholds.
Maintenance suggestions
- Replace isolation barriersevery 5 years to maintain signal integrity in hazardous areas.
- Calibrate inputsannually using certified reference sources to ensure measurement accuracy.
- Monitor diagnostic LEDsfor real-time status updates and trigger alarms for faults.
- Clean the modulequarterly with compressed air to prevent dust accumulation.
