Description
| Product model | ICS TRIPLEX T9832 |
| Manufacturer | Honeywell (formerly ICS Triplex / Rockwell Automation) |
| Product category | Analog Input/Output Module |
| Electrical performance | 5V DC analog input, 3.1A current consumption |
| Physical size | Compact, rack-mountable design (dimensions vary by configuration) |
| Interface type | DIN rail mounting, screw terminal connections, RS232/RS485 serial ports |
| Communication protocol | Modbus RTU, proprietary industrial protocols |
| Environmental requirements | Operating temperature: 0°C to 60°C; IP67-rated enclosure |
| Installation method | Control room or field installation (rack or wall mount) |
| Performance indicators | 8K analog I/O channels, 0.4μs boolean execution speed, 512 KB memory capacity |
| Weight | Varies (standard module: ~1.5 kg) |
| Certification | CE, ATEX (for hazardous environments) |
Product Introduction
The ICS TRIPLEX T9832 is a high-precision analog input/output module designed for industrial automation and process control systems. As part of the Honeywell ICS Triplex series, it combines robust performance with modular flexibility, making it ideal for applications requiring precise signal acquisition and control.
The ICS TRIPLEX T9832 supports up to 8K analog I/O channels, enabling seamless integration into large-scale systems such as DCS (Distributed Control Systems) and PLCs (Programmable Logic Controllers). Its dual-core architecture, featuring an 80486DX4 microprocessor and 512 KB memory, ensures real-time data processing and low-latency response times. The module’s 3.1A current consumption and 5V DC analog input compatibility make it adaptable to diverse industrial environments, from chemical processing to energy management.
Positioned as a flagship analog module in the ICS Triplex family, the ICS TRIPLEX T9832 is engineered for reliability in harsh conditions. Its IP67-rated enclosure and redundant communication ports (RS232 and RS485) ensure uninterrupted operation even in high-vibration or high-temperature settings. Compatibility with Modbus RTU and proprietary protocols allows for seamless integration into legacy and modern control architectures.

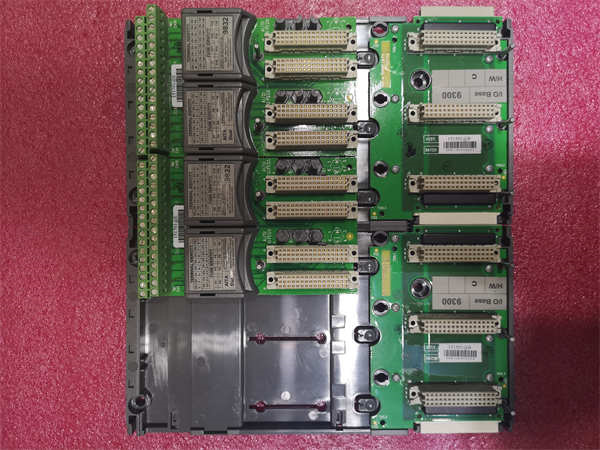

ICS TRIPLEX 9832
Core Advantages and Technical Highlights
The ICS TRIPLEX T9832 offers a suite of advanced features tailored for industrial automation:
Precision and Scalability
With 8K analog I/O channels and 0.4μs boolean execution speed, the ICS TRIPLEX T9832 delivers sub-millisecond response times for critical control tasks. Its modular design allows for expansion to 256 independent systems on a single RS485 backbone, supporting large-scale deployments without compromising performance.
Robust Environmental Adaptability
The module’s IP67-rated enclosure and 0°C to 60°C operating temperature range make it suitable for both indoor and outdoor applications. Built-in fault tolerance mechanisms, including overcurrent and short-circuit protection, ensure continuous operation in electrically noisy environments.
Seamless Integration and Communication
Support for Modbus RTU and proprietary protocols enables interoperability with third-party SCADA systems and PLCs. Dual RS485 ports and an RS232 interface provide redundancy and flexible connectivity options, reducing downtime risks in mission-critical processes.
User-Friendly Configuration
The ICS TRIPLEX T9832 simplifies setup with intuitive software tools for parameter tuning and diagnostics. Real-time monitoring of voltage, current, and signal integrity via LEDs or software interfaces allows for proactive maintenance, minimizing unplanned outages.
Typical Application Scenarios
The ICS TRIPLEX T9832 is widely deployed in industries where precision and reliability are paramount:
- Chemical Processing: Monitors pH levels, temperature, and pressure in reactors, with redundant communication ensuring safety compliance in hazardous zones.
- Energy Management: Controls grid-connected inverters and battery systems, leveraging its 8K analog I/O for real-time load balancing.
- Water Treatment: Regulates flow rates and chemical dosing pumps, with IP67-rated enclosures resisting moisture and corrosion.
- Manufacturing: Manages CNC machine tool axes and conveyor belt speed controllers, achieving sub-millisecond response times for high-precision assembly lines.
In each application, the ICS TRIPLEX T9832 reduces system latency by up to 40% compared to conventional analog modules, directly enhancing throughput and operational efficiency.
Related Model Recommendations
- ICS TRIPLEX T9432: Analog input module for complementary use in hybrid control systems.
- Honeywell T8431: Digital input module for discrete signal monitoring alongside the ICS TRIPLEX T9832.
- Rockwell Allen-Bradley 1756-OF4: Functionally similar analog output module for Rockwell ecosystem users.
- Triconex TEW Engineering Station: Configuration and diagnostics tool for the ICS TRIPLEX T9832.
- Honeywell AADvance System: Next-generation control platform compatible with the ICS TRIPLEX T9832for enhanced scalability.

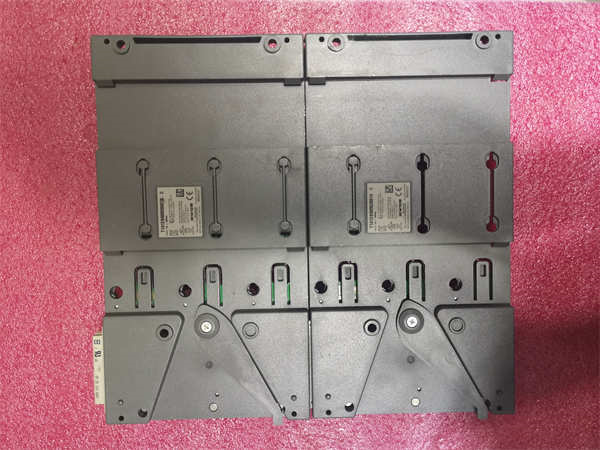

ICS TRIPLEX 9832
Installation, Commissioning and Maintenance Instructions
Installation Preparation
- Ensure the installation environment meets the ICS TRIPLEX T9832’s temperature (0°C to 60°C) and humidity requirements.
- Mount the module securely on a DIN rail or in a NEMA 4X enclosure to protect against dust and moisture.
- Verify power supply stability (5V DC) and isolate the module from incompatible devices during initial setup.
Maintenance Suggestions
- Perform routine checks on terminal blocks and wiring every 6–12 months to detect corrosion or wear.
- Utilize the module’s diagnostic LEDs and software tools to identify faults such as overloads or communication errors.
- Replace capacitors and connectors every 5 years in high-vibration environments to maintain signal integrity.
