Description
| Model Number | T8451 |
| Manufacturer | ICS Triplex / GE Automation & Controls |
| System Platform | Triconex® Safety Instrumented System (SIS) |
| Module Type | 32-Channel Discrete Input Module |
| Input Type | DC Voltage (typically 24/48 VDC) |
| Channels per Module | 32 points (3-channel TMR architecture) |
| Voting Architecture | Triple-Modular Redundant (TMR) – 3 x 32 inputs |
| Isolation | Channel-to-channel and channel-to-ground: 250 VAC continuous |
| Input Voltage Range | 10–60 VDC (supports 24VDC and 48VDC systems) |
| On-State Voltage (Min) | 11 VDC @ 2.8 mA (typical) |
| Off-State Voltage (Max) | 5 VDC |
| Response Time | < 5 ms (programmable filter options available) |
| Diagnostics | Built-in field wiring diagnostics (short/open circuit detection) |
| LED Indicators | Per-point LED status (input on/off), module health, fault |
| Compatibility | Works with T8110B, T8112, T8300, T8311, T8403, T8151B, etc. |
| Chassis Compatibility | Tricon Models 8011, 8012, 8013 |
| Programming Software | Tristation 1131 (IEC 61131-3 compliant) |
| Safety Certification | TÜV-certified for SIL 3 per IEC 61508 |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Installation | 19-inch rack mount – occupies one I/O slot in Tricon chassis |
📦 Product Introduction
The ICS Triplex T8451 is a high-density 32-channel DC discrete input module designed for the Triconex® safety instrumented system (SIS). It is engineered to interface with field devices such as emergency stop buttons, limit switches, pressure switches, valve position feedback, and fire & gas detection sensors in mission-critical industrial environments.
As a Triple-Modular Redundant (TMR) module, the T8451 receives the same input signal across three independent channels, performs real-time voting, and ensures fault-tolerant operation. This means that even if one channel fails or experiences noise, the system continues to operate safely and reliably — a core requirement for SIL 3 safety applications.
The T8451 is ideal for applications requiring high I/O density and maximum safety integrity, such as Emergency Shutdown (ESD), Fire & Gas (F&G) systems, Burner Management (BMS), and process interlocks in oil & gas, chemical, power, and refining industries.

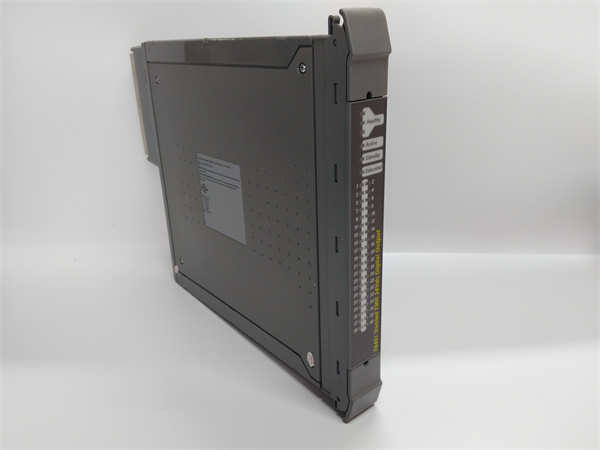

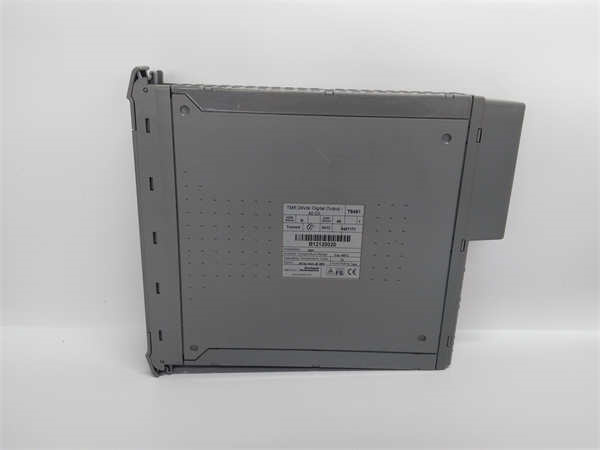

ICS TRIPLEX T8451
✅ Core Advantages & Technical Highlights
1. High Channel Density (32 Points)
- Doubles the input capacity compared to older 16-point modules (e.g., T9401B).
- Reduces the number of required modules and chassis slots, saving space and cost.
- Ideal for large-scale systems with hundreds of safety inputs.
2. Triple Modular Redundancy (TMR) with Voting
- Each input is processed by three independent circuits.
- Real-time voting at the input stagedetects and masks faults automatically.
- Ensures no single point of failureaffects system integrity.
3. Wide Input Voltage Range (10–60 VDC)
- Compatible with both 24VDC and 48VDCfield systems.
- Flexible for use across different plant voltage standards.
- Reduces need for external signal conditioning.
4. Advanced Diagnostics
- Detects open circuit (broken wire)and short circuit (field wiring fault)
- Alarms can be configured in logic to notify maintenance personnel.
- Improves predictive maintenanceand reduces downtime.
5. Fast Response Time & Filtering
- Typical response time < 5 ms, suitable for fast-acting safety interlocks.
- Programmable input filters help eliminate electrical noisefrom industrial environments.
6. Hot-Swap & Online Maintenance
- Supports hot-swap replacementwithout shutting down the safety system.
- LEDs provide immediate visual feedback on input status and module health.
🏭 Typical Application Scenarios
| Industry | Application | Role of T8451 |
| Oil & Gas Platforms | ESD System Inputs | Monitors E-stop buttons, manual shutdown stations, and isolation valves |
| Refineries | Fire & Gas Detection | Connects to smoke, flame, and gas detectors for automatic shutdown |
| Chemical Plants | Reactor Safety Interlocks | Reads limit switches, pressure switches, and level sensors |
| Power Stations | Turbine Protection | Interfaces with vibration, overspeed, and lube oil pressure switches |
| LNG Facilities | Cryogenic Valve Feedback | Monitors position of critical isolation valves in low-temp systems |
🔗 Related Model Recommendations
| Model | Type | Relationship to T8451 |
| T9401B | 16-Channel Discrete Input | Older model; T8451 offers higher density |
| T8311 / T8110B | Main Processor | Host CPU that processes T8451 input data |
| T8151B / T8403 | Ethernet Module | Transmits T8451 data to SCADA/DCS |
| T1025 | Analog Input Module | Complements T8451 for mixed signal systems |
| T8551 | Discrete Output Module | Paired with T8451 for full control loop |
| 8011 Chassis | I/O Chassis | Physical housing for T8451 installation |
| Tristation 1131 | Engineering Software | Used to configure, monitor, and diagnose T8451 |

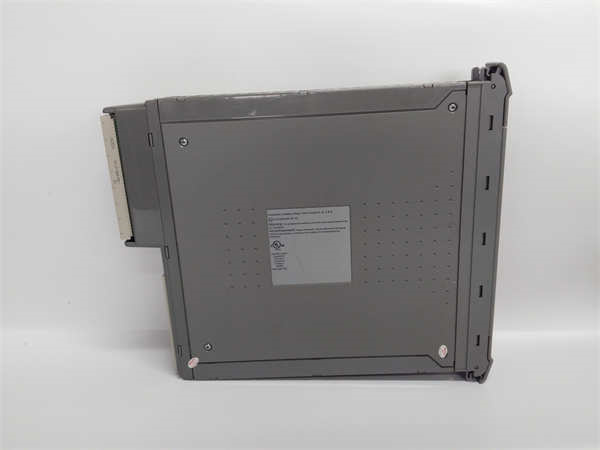

ICS TRIPLEX T8451
⚙️ Installation, Commissioning & Maintenance
Installation
- Install in any available I/O slot(Slots 4–5 in 5-slot chassis).
- Use ESD protection; ensure chassis is powered during hot-swap.
- Connect field wiring via compatible terminal assemblies (e.g., T4001 series).
- Verify wiring polarity and insulation.
Commissioning
- Configure input filtering, diagnostic enable, and alarm settingsin Tristation 1131.
- Perform loop checkswith field devices.
- Test TMR voting behaviorby simulating a fault on one channel.
- Validate open/short circuit detectionif enabled.
- Monitor LED statusand event logs.
Maintenance
- Regularly inspect LED indicatorsfor abnormal patterns.
- Review diagnostic logsfor recurring field wiring issues.
- Clean connectors and check for corrosion in harsh environments.
- Replace faulty modules using hot-swap
- Keep spare modules calibrated and stored properly.
