Industrial grade security solution: ICS TRIPLEX T9432- Helps build highly available, high integrity security systems!

Description

Product Introduction

The ICS TRIPLEX T9432 is a high-speed dual-port Ethernet communication module designed specifically for use in TRICONex safety instrumented systems (SIS). It enables secure, real-time data exchange between the TRICON or TRICONex safety controller and other control systems such as DCS (Distributed Control Systems), SCADA systems, PLCs, or host HMIs.

Compared to its predecessor T9402, the T9432 offers enhanced performance with 100 Mbps full-duplex Ethernet communication, making it suitable for applications requiring faster data transfer rates, higher network availability, and greater integration flexibility.

This module supports redundant network configurations, including dual-homing and HSRP/VRRP, ensuring zero downtime during network failures. It is widely used in oil & gas, chemical processing, power generation, and other industries where safe and reliable communication between safety and control systems is mission-critical.

ICS TRIPLEX T9432

Core Advantages and Technical Highlights

High-Speed Ethernet Connectivity

Supports 100 Mbps full-duplex Ethernet, enabling fast and reliable data transfer between the TRICONex controller and external systems.

Redundant Network Architecture

Dual Ethernet ports support network redundancy, dual-homing, and HSRP/VRRP, ensuring continuous communication even if one port or link fails.

Protocol Flexibility

Supports MODBUS TCP/IP natively; optional support for EtherNet/IP and ABB-specific protocols allows for seamless integration with various control platforms.

Seamless Integration with TRICONex

Designed specifically for installation in TRICONex chassis, drawing power directly from the backplane—no external wiring needed.

Secure and Reliable Communication

Ensures safe and accurate transmission of process variables, alarms, diagnostics, and control commands between the SIS and BPCS (Basic Process Control System).

Hot-Swappable Design

Can be replaced without shutting down the system (subject to configuration), minimizing downtime during maintenance.

Industrial-Grade Build

Operates reliably within an extended temperature range (-20°C to +60°C), suitable for harsh industrial environments.

Typical Application Scenarios

The ICS TRIPLEX T9432 plays a vital role in facilitating secure, high-speed communication between safety systems and control or monitoring systems:

• Integration with DCS: Enables real-time sharing of safety-related process variables (e.g., pressure, temperature, level) with the plant DCS for visualization and coordination.
• SCADA Interface: Provides connectivity to central SCADA systems for remote monitoring and alarm management.
• Data Exchange with PLCs: Allows safe and controlled handshaking between the SIS and BPCS PLCs for coordinated process control.
• HMI Communication: Feeds safety system status and diagnostic data to operator HMIs for situational awareness.
• Alarm and Event Logging: Transmits trip events, diagnostics, and safety system status to historian or event logging servers.
• Remote Diagnostics and Maintenance: Facilitates remote access to the TRICONex system for troubleshooting and configuration updates.
• Plant-wide Data Integration: Serves as a gateway for integrating safety system data into enterprise-level MES or ERP systems.

In each application, the T9432 ensures that critical safety data is communicated accurately and securely to external systems while maintaining the integrity and independence of the safety system.

Related Model Recommendations

• TRICON 3008 / 3009: Mainframe controllers that integrate with the T9432for communication to external systems
• T8310 / T8311: Digital input modules often used alongside T9432for discrete signal interfacing
• T8403 / T8461: Analog I/O modules used with T9432for transmitting process variables and control signals
• T9402: Older version of the Ethernet communication module with lower speed (10/100 Mbps)
• T9410: Fiber optic communication module for long-distance or EMI-sensitive installations
• HIMA HIMax / HIFOCUS: Alternative SIS platforms that may interface with T9432via standard protocols
• Siemens CP 1616 / SCALANCE: Ethernet communication modules used in SIMATIC-based redundant systems
• Schneider Modicon M580 EHS: High-end safety controller with integrated Ethernet for interfacing with T9432
• Rockwell ControlLogix with冗余通讯模块: May connect to T9432for process coordination in hybrid systems
• ABB AC500-S / AC800F: Controllers that can coexist with T9432-based TRICON systems in hybrid architectures

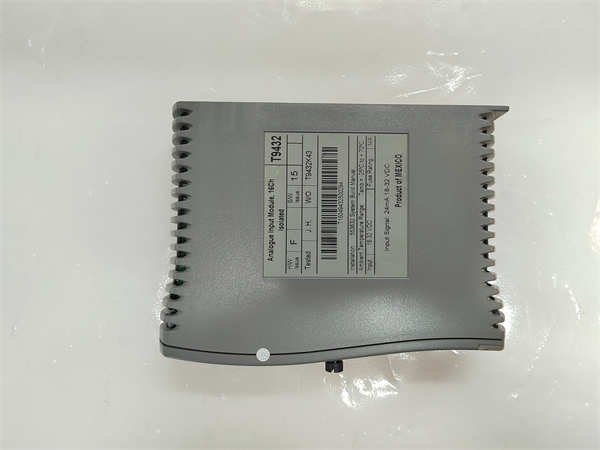

ICS TRIPLEX T9432

Installation, Commissioning and Maintenance Instructions

Installation Preparation

• Ensure the TRICON chassis is powered off before inserting or removing the T9432(unless configured for hot-swapping).
• Confirm that the module is seated properly in the slot and secured with the retention clips.
• Use proper ESD precautions when handling the module.

Commissioning Steps

1. Insert the T9432into the designated communication slot in the TRICON chassis.
2. Configure the module using TriStation 1131software or through the Triconex Workbench
3. Connect both Ethernet ports to the respective switches or network infrastructure.
4. Assign IP addresses and configure communication parameters (subnet mask, gateway, etc.).
5. Test communication by pinging remote devices or using MODBUS polling tools.
6. Integrate with external systems (DCS, SCADA, etc.) and verify data exchange.

Maintenance Suggestions

• Periodically check network connections and cable conditions for damage or wear.
• Monitor network traffic and errors via diagnostic tools or SNMP.
• Keep firmware updated per manufacturer recommendations.
• Replace the module immediately if communication failures persist after troubleshooting.
