Description
| Product model | IS210AEBIH3BED |
| Manufacturer | GE (General Electric) |
| Product category | High-Density Discrete Input Module for Mark VIe/VIeS Systems |
| Function type | 64-Channel Isolated Discrete Input Module |
| Voltage rating | 125 VDC nominal (operates within 90–150 VDC range) |
| Input type | Form A or Form C Dry Contact (SPST or SPDT relay inputs), isolated |
| Isolation voltage | 2500 VAC RMS (channel-to-backplane) |
| Response time | < 2 ms typical |
| Backplane interface | VMEbus – Compatible with AEBI (Auxiliary Expansion Board Interface) chassis |
| Operating temperature | 0°C to 60°C (32°F to 140°F) |
| Humidity tolerance | 5% to 95% RH, non-condensing |
| Certification | CE, UL Listed, CSA, compliant with IEC 61000 for EMC and safety |
Product Introduction
The IS210AEBIH3BED is a high-performance, high-density discrete input module developed by GE as part of the Mark VIe and Mark VIeS turbine control systems. Designed for large-scale industrial applications, this module provides 64 isolated discrete input channels in a single-slot VME form factor, making it ideal for monitoring extensive auxiliary and balance-of-plant (BOP) equipment in gas and steam turbine installations.
As a member of the AEBI (Auxiliary Expansion Board Interface) series, the IS210AEBIH3BED is typically deployed in remote I/O cabinets or satellite control racks to collect status signals from field devices such as emergency stop buttons, relay contacts, valve position indicators, circuit breakers, fire & gas systems, and safety interlocks. It plays a critical role in turbine protection, sequencing, and operational interlock logic by providing reliable, real-time feedback to the central control processors.
The module integrates seamlessly into the Mark VIe architecture via the VMEbus backplane and supports hot-swap capability, enabling replacement or maintenance without shutting down the turbine or control system—ensuring high availability and operational continuity. Configuration, monitoring, and diagnostics are performed using GE’s ToolboxST software, providing full visibility into input status and health.

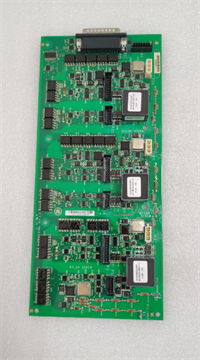

IS210AEBIH3BED GE
Core Advantages and Technical Highlights
64-Channel High-Density Input Capability
The IS210AEBIH3BED delivers 64 discrete input channels in a single module, doubling the capacity of standard 32-channel modules (e.g., IS210AEBIH1BED). This high channel density reduces the number of required I/O slots and chassis space, lowering system footprint and cost—especially beneficial in combined cycle plants and large industrial facilities with extensive monitoring needs.
Robust Electrical Isolation and Noise Immunity
Each input channel is optically isolated with a 2500 VAC RMS rating (channel-to-backplane), providing excellent protection against ground loops, voltage transients, and electromagnetic interference (EMI). This ensures signal integrity and long-term reliability in electrically noisy power plant environments.
Native Integration with Mark VIe Platform
Engineered specifically for the GE Mark VIe/VIeS ecosystem, the IS210AEBIH3BED communicates over the VMEbus within the AEBI chassis and interfaces seamlessly with redundant control processors. It supports hot swapping, enabling field replacement without system shutdown. All input configurations, alarm settings, and diagnostic functions are managed through ToolboxST, GE’s standard engineering and diagnostic software.
Advanced Diagnostics and System Reliability
The module includes comprehensive self-diagnostics that continuously monitor for:
- Open wire conditions
- Short circuits
- Abnormal voltage levels
Diagnostic data is reported in real time to the control system, enabling predictive maintenance and rapid troubleshooting. When used in safety-critical applications, the IS210AEBIH3BED can be integrated into triple-redundant (3/4 voting) architectures to enhance system availability and fault tolerance.
Typical Application Scenarios
The IS210AEBIH3BED is widely used in:
- Combined cycle power plants
- Industrial co-generation units
- Large gas and steam turbine facilities
- Offshore platforms
- Distributed energy systems
It is commonly installed in remote I/O cabinets near:
- HRSG (Heat Recovery Steam Generator) units
- Lube oil skids
- Cooling water systems
- Fuel gas stations
- Compressor inlets
Typical monitored devices include:
- Emergency stop pushbuttons
- Generator and motor circuit breaker status
- Inlet guide vane and bleed valve position switches
- Fire & gas detection relay contacts
- Enclosure access and safety interlocks
- Hydraulic and lube oil pressure switches
Its compatibility with 125 VDC control systems makes it ideal for interfacing with legacy relays and switchgear.
Related Model Recommendations
| Model Number | Description |
| IS210AEBIG3BED | 64-channel discrete output module; pairs with IS210AEBIH3BED for control signal distribution. |
| IS210AEBIA1BED | Analog input module for RTD and thermocouple signals; complements discrete monitoring. |
| IS210AEBIC1BED | Communications interface module for DCS/SCADA integration. |
| IS210PVDIH1CFS | AEBI chassis processor module; processes input data from IS210AEBIH3BED. |
| IS210XCVPG1CFS | Power supply module for AEBI chassis, powers IS210AEBIH3BED and other I/O cards. |
| IS210TBDIH3BED | Terminal board assembly designed for IS210AEBIH3BED (64-channel spring-clamp or screw terminals). |
| IS200VTURH2BAC | High-density discrete input module for main VTUR chassis; used in conjunction with AEBI systems. |

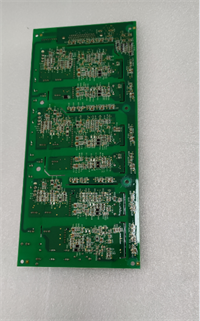

IS210AEBIH3BED GE
Installation Preparation
Before installing the IS210AEBIH3BED:
- Ensure the AEBI chassis is either powered down or configured forhot-swap operation.
- Verify the VME backplane is clean and undamaged.
- Install the correct terminal board:IS210TBDIH3BED.
- Useshielded, twisted-pair cables for field wiring.
- Route signal cables away from AC power lines to minimize EMI.
- Confirm the 125 VDC supply is properly fused and isolated.
- Always wear anESD wrist strap when handling the module.
Maintenance Suggestions
- Monitor the module regularly usingToolboxST to check input status and diagnostic logs.
- Clean chassis filters and vents every 3–6 months to ensure proper cooling.
- During planned outages, inspect terminal connections for tightness and verify circuit continuity.
- Replace the module only if diagnostics confirm a hardware fault—typical service life exceeds 10 years.
- Always back up configuration data before removal or replacement.
