Description
| Product model | 5541 |
| Manufacturer | MTL Instruments |
| Product category | Intrinsic Safety (IS) Barrier / Signal Isolator |
| Type | Analog Input Isolator (Passive) |
| Signal Type | 4–20 mA DC |
| Channel Configuration | 1-channel (per module) |
| Mounting | DIN rail (standard 35 mm) |
| Connection | Spring-clamp or screw terminals (depending on variant) |
| Loop Supply | Provided via backplane or external source |
| Input Connection | Field side (hazardous area) |
| Output Connection | Control system side (safe area) |
| Intrinsic Safety Approval | ATEX, IECEx, FM, CSA, INMETRO |
| Protection Type | Entity Barrier (zener barrier with fuse) |
| Galvanic Isolation | Yes (input/output/power) |
| Isolation Voltage | Up to 1500 VAC |
| Operating Temperature | -20°C to +60°C |
| Housing Material | Flame-retardant plastic (UL 94 V-0) |
| Weight | Approx. 100 g |
Detailed Parameter Table
| Parameter | Value |
| Model Number | MTL 5541 |
| Function | 4–20 mA Analog Input IS Barrier |
| Channel Type | Single-channel passive isolator |
| Input Signal | 4–20 mA from field device (e.g., transmitter) |
| Output Signal | Isolated 4–20 mA to control system (PLC/DCS) |
| Power Source | Derived from output loop or auxiliary supply |
| Isolation | 3-way: Input–Output–Power |
| Isolation Voltage | 1500 VAC RMS (1 min) |
| Response Time | < 10 ms |
| Maximum Loop Resistance | 750 Ω (typical) |
| Ambient Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +80°C |
| Humidity | 5% to 95% RH (non-condensing) |
| EMC Compliance | IEC 61326-3-1 |
| Safety Standards | IEC 60079-11, IEC 60079-25 |
| Certifications | ATEX II 1/2 G EEx ia IIC, IECEx ia IIC, FM/CSA Class I, II, III Div 1 |
| Mounting | Top-hat DIN rail (EN 60715) |
| Termination | Spring-clamp or screw terminals (model variant) |
| Width | 12.5 mm (compact design) |
| Status Indication | Optional LED (on select variants) |
Product Introduction

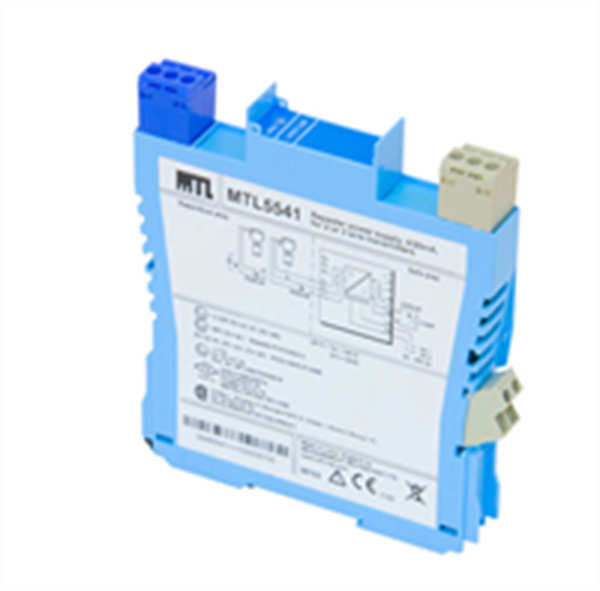

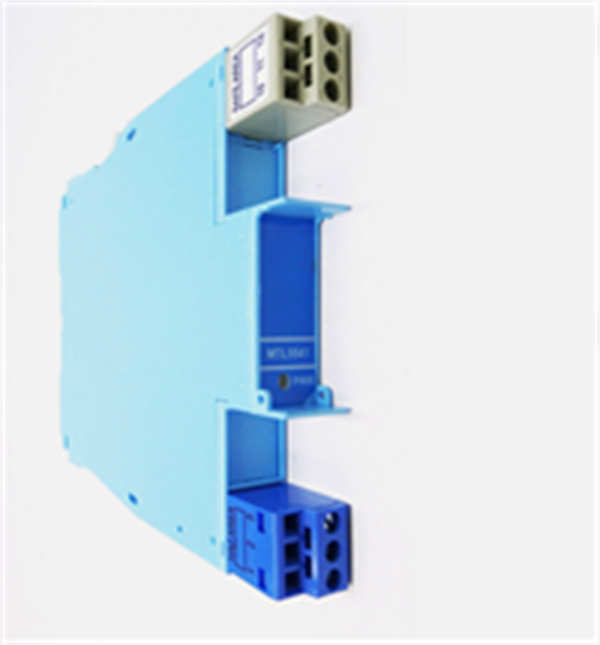

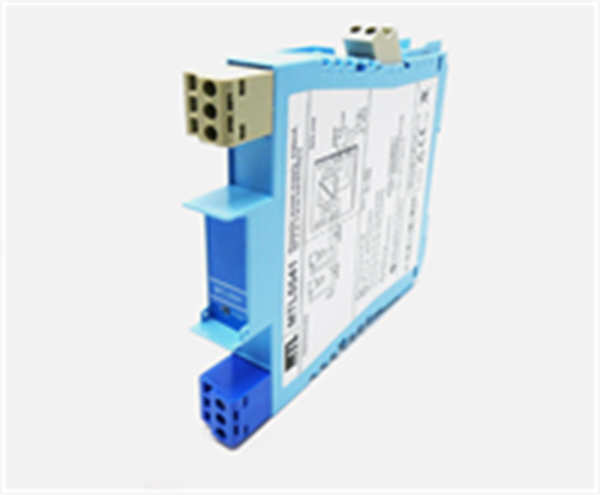

The MTL 5541 is a single-channel intrinsic safety (IS) barrier designed to safely interface 4–20 mA analog signals from field instruments located in hazardous areas (e.g., explosive gas, vapor, or dust environments) to control systems in safe areas. As part of MTL’s proven 5000 Series of signal conditioning and isolation products, the 5541 ensures that energy levels entering the hazardous area remain below the threshold required to ignite flammable atmospheres, complying with international standards such as ATEX, IECEx, and FM.
This passive isolator is typically used with field devices such as pressure transmitters, temperature sensors (via transmitters), level sensors, and flow meters in industries including oil & gas, chemical processing, pharmaceuticals, power generation, and marine. The 5541 provides galvanic isolation between the field and control system, protecting sensitive electronics from ground loops, electrical noise, and voltage surges.
Designed for reliability and ease of use, the MTL 5541 features a compact 12.5 mm width, allowing high-density installation on standard DIN rails. It requires no external power supply in loop-powered configurations, drawing power from the connected control system (e.g., PLC analog input card). For enhanced diagnostics, some variants include LED indicators for signal status.
Core Advantages and Technical Highlights
Intrinsic Safety Compliance
The 5541 is certified for use in Zone 0/1 (gas) and Zone 20/21 (dust) environments when installed per Entity or Fieldbus Foundation guidelines. It uses zener diodes and fuses to limit voltage and current entering the hazardous area, preventing ignition.
Galvanic Isolation
Provides full three-way isolation (input–output–power), eliminating ground loops and suppressing electrical noise, which improves signal integrity and system reliability in electrically noisy industrial environments.
Passive Operation (No External Power Required)
In standard loop-powered mode, the 5541 derives its operating power from the output loop (PLC side), simplifying wiring and reducing panel power requirements.
Compact and Modular Design
Only 12.5 mm wide, enabling high-density installation on DIN rails. Can be combined with other MTL 5000 series modules (e.g., 5542 for output, 5551 for thermocouple) in mixed-signal panels.
High Reliability and Long Service Life
Solid-state design with no moving parts or fans. Proven in harsh industrial environments with operating temperatures from -20°C to +60°C.
Flexible Termination Options
Available with spring-clamp (faster, tool-free wiring) or screw terminals (secure for high-vibration environments), depending on model variant.
Easy Maintenance and Diagnostics
Optional LED indicators show active signal presence. Individual modules can be removed or replaced without affecting adjacent channels.
Typical Application Scenarios
Oil & Gas Production Platforms
Used to isolate 4–20 mA signals from pressure and temperature transmitters in wellhead enclosures (Zone 1) and feed them safely to the central control room (safe area). The 5541 ensures compliance with offshore safety standards.
Chemical Processing Plants
Interfaces with level transmitters in reactor vessels containing flammable solvents (Class I Div 1), preventing ignition while maintaining precise process control.
Refinery Control Systems
Installs in junction boxes or marshalling cabinets to isolate flow meter signals from crude oil pipelines, protecting DCS systems from surges and noise.
Pharmaceutical Manufacturing
Used in solvent-handling areas (Zone 1) to connect concentration sensors to PLCs, ensuring intrinsic safety during batch processing.
LNG Terminals
Connects cryogenic temperature transmitters in storage areas (hazardous zones) to monitoring systems, with reliable isolation under extreme conditions.
Related Model Recommendations
| Model | Function | Use Case |
| MTL 5542 | 4–20 mA Output IS Barrier | Isolates control signals from PLC to field actuators (e.g., I/P converters) |
| MTL 5551 | Thermocouple Input Isolator | For K, J, T type thermocouples in hazardous areas |
| MTL 5553 | RTD Input Isolator | Interfaces Pt100/Pt1000 sensors in explosive atmospheres |
| MTL 5041 | 24 VDC Intrinsic Safety Barrier | Powers and isolates 2-wire transmitters |
| MTL 4541 | Redundant IS Barrier | For critical applications requiring fault tolerance |
| Reliance 48067 | MTL replacement (by Cooper Crouse-Hinds) | Compatible alternative in legacy systems |
| Phoenix Contact VAL-MAX | Modern alternative with diagnostics | For upgraded systems requiring HART or advanced monitoring |
Installation, Commissioning, and Maintenance Instructions
Installation:
- Mount on 35 mm DIN railin a safe area control cabinet.
- Ensure proper grounding of the ground bus bar—this is critical for intrinsic safety.
- Wire field-side (hazardous area) to input terminals, and control-side (PLC) to output terminals.
- Observe polarity and loop resistance limits.
- Use shielded cables and ground shields at one end only (typically safe area).
Commissioning:
- Verify wiring per MTL documentation and loop drawings.
- Power up the system and check for correct 4–20 mA signal transfer.
- Test with simulated input (e.g., calibrator) to confirm linearity and isolation.
- Confirm no ground loops or noise interference.
Maintenance:
- Periodically inspect terminals for tightness.
- Check for signs of overheating or corrosion.
- Clean with dry cloth; do not use solvents.
- If a fuse blows, investigate the cause (e.g., short circuit in field wiring).
- Replace module if faulty—no internal repair recommended.
