Description
| Parameter Name | Parameter Value |
| Product Model | MTL 8507-BI-DP |
| Manufacturer | MTL Instruments / Emerson |
| Product Category | Intrinsic Safety (I.S.) Barrier Module / PROFIBUS DP Interface |
| Function | Provides intrinsic safety barrier protection for PROFIBUS DP field devices |
| Communication Interface | PROFIBUS DP |
| Input/Output Type | Digital input or output (depending on model variant) |
| Power Supply | Powered from bus side (control system side), typically 24V DC |
| Intrinsic Safety Approval | ATEX, IECEx, FM, CSA, UL Listed |
| Mounting Method | DIN rail mount |
| Environmental Requirements | Operating Temperature: -20°C to +60°C; Humidity: up to 95% RH non-condensing |
| Protection Rating | IP20 |
| Conformity Standards | Complies with IEC 60079-0, IEC 60079-11, EN 60079-0, EN 60079-11 |
| Certifications | CE, UL, cUL, ATEX, IECEx |
📘 Product Introduction
The MTL 8507-BI-DP is an intrinsic safety barrier module specifically designed for use in hazardous area applications where PROFIBUS DP communication signals must be safely transmitted between the control room (safe area) and field devices located in explosive atmospheres.
This module enables digital communication signals to pass through a galvanically isolated and intrinsically safe interface, ensuring that no dangerous levels of energy can reach the hazardous zone. It is commonly used in industries such as oil & gas, chemical processing, pharmaceuticals, and petrochemicals, where explosive gases or vapors may be present.
As part of MTL’s family of barrier and isolator modules, the 8507-BI-DP ensures reliable and safe digital signal transmission while maintaining compliance with international intrinsic safety standards.

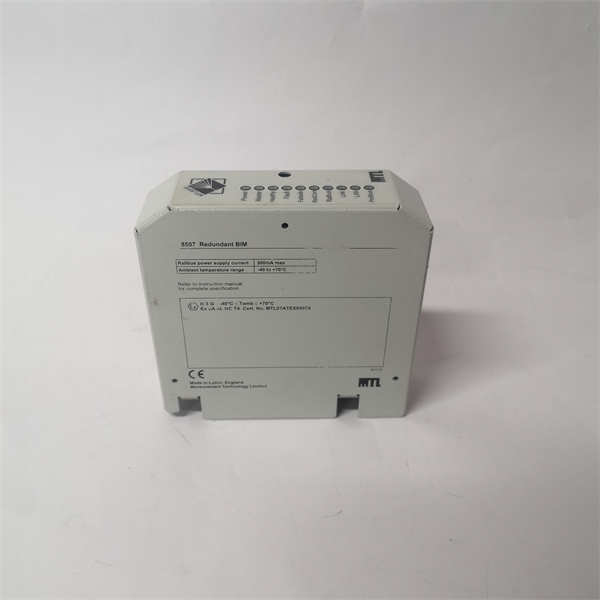

MTL 8507-BI-DP
⚙️ Core Advantages and Technical Highlights
🔹 Intrinsic Safety Certification
Designed and certified to ATEX, IECEx, FM, and CSA standards, making it suitable for use in Zones 0, 1, and 2 (gas) and Zones 20, 21, and 22 (dust).
🔹 PROFIBUS DP Signal Transmission
Supports standard PROFIBUS DP communication protocol at speeds up to 12 Mbps, allowing seamless integration into industrial automation systems.
🔹 Galvanic Isolation
Provides electrical isolation between the safe area (control system) and the hazardous area (field device), preventing ground loops and noise interference.
🔹 Plug-and-Play Installation
DIN rail mounting and standard wiring make installation quick and straightforward without requiring complex configuration.
🔹 High Reliability and Low Maintenance
Solid-state design with no moving parts ensures long service life and minimal downtime.
🔹 Diagnostic Capabilities
Some versions include LED indicators for signal status and fault detection, enabling quick troubleshooting and maintenance.
🏭 Typical Application Scenarios
- Oil Refineries and Offshore Platforms: Safely transmitting PROFIBUS signals to flow meters, valve positioners, and analyzers in hazardous zones.
- Chemical Processing Plants: Connecting distributed I/O modules, smart sensors, and actuators in environments with flammable gases.
- Pharmaceutical Manufacturing: Ensuring safe data communication with weighing systems, dosing units, and cleaning-in-place (CIP) equipment.
- Gas Pipelines and Metering Stations: Providing intrinsic safety isolation for turbine flow meters and pressure transmitters.
- Petrochemical Storage Facilities: Enabling safe communications with tank level gauges and emergency shutdown systems.

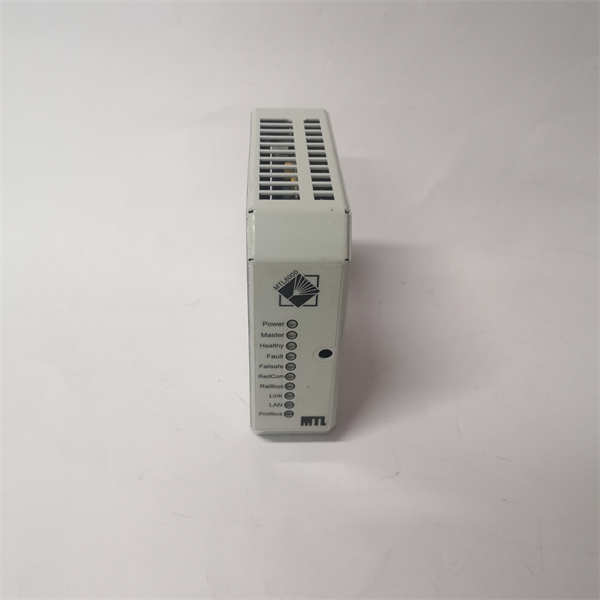

MTL 8507-BI-DP
🔧 Installation, Commissioning & Maintenance Instructions
✅ Installation Preparation
- Confirm the installation environmentmeets temperature, humidity, and cleanliness requirements.
- Ensure the control cabinetis properly grounded and installed in a non-hazardous area.
- Verify that the PROFIBUS DP cableis correctly terminated and shielded.
- Use proper cable glands and conduitsfor hazardous area wiring when connecting field devices.
🔧 Commissioning Steps
- Mount the MTL 8507-BI-DPon a standard 35 mm DIN rail.
- Connect the bus-side PROFIBUS DP cableto the D-sub connector or terminal block (depending on version).
- Wire the field-side PROFIBUS DP connectionto the appropriate field device in the hazardous area.
- Apply power to the system and check LED indicators for correct operation.
- Test communication by polling the connected field device via the control system (e.g., PLC or DCS).
- Monitor signal quality and error counters to ensure reliable data transmission.
🛠️ Maintenance Suggestions
- Regularly inspect LED indicators for fault conditions or signal loss.
- Check all wiring connections for tightness and corrosion.
- Clean dust buildup around the module and in the cabinet.
- Record alarm history and communication errors for predictive maintenance.
- Replace or upgrade the module if firmware updates or performance improvements are required.
🔄 Related Model Recommendations
- MTL 8507-EX-DP: Similar product, possibly with different I.S. certification or regional approvals.
- MTL 8507-SI-DP: Variant for PROFIBUS PAinstead of DP.
- MTL 8507-BI-RS: Intrinsic safety barrier for RS-485 Modbus
- MTL 8507-BI-ETH: For Ethernet/IP or PROFINETsignal isolation in hazardous areas.
- MTL 8507 Series Repeaters / Couplers: Used in multi-drop PROFIBUS segments to extend network distance.
- MTL 8000 Series Barriers: Other digital and analog I/O intrinsic safety barriers from MTL.
- Emerson Rosemount Fieldbus Components: Compatible field instruments and I/O devices.
