Description
| Product model | MTL5053 |
| Manufacturer | MTL Instruments (now part of Cooper Industries / Eaton) |
| Product category | Intrinsically Safe Analog Input Signal Conditioner |
| Number of Channels | 4 isolated input/output channels |
| Input Signal Type | 4–20 mA (active or passive), loop-powered |
| Output Signal Type | 4–20 mA (retransmitted, isolated) |
| Isolation Voltage | 1500 V AC rms (50 Hz, 1 min), input/output/power |
| Accuracy | ±0.1% of span at 25°C |
| Power Supply | 20–30 V DC (typically 24 V DC from system bus) |
| Hazardous Area Certification | ATEX, IECEx, FM, CSA (for Zone 0/1, Class I Div 1) |
| Mounting Type | DIN rail (35 mm), compatible with MTL5000 series rack |
| Operating Temperature | -20°C to +60°C |
Product Introduction
The MTL5053 MTL is a four-channel intrinsically safe analog input signal conditioner designed for use in hazardous industrial environments where explosion risk demands rigorous electrical isolation and energy limitation. As part of the widely deployed MTL5000 series, the MTL5053 MTL safely interfaces field devices—such as transmitters, flow meters, and pressure sensors—located in Zone 0 or Class I Division 1 areas with control room equipment like PLCs, DCS modules, and recorders.
Each channel of the MTL5053 MTL provides full galvanic isolation between field, system, and power circuits, effectively eliminating ground loops, suppressing common-mode noise, and preventing fault propagation. The module retransmits the 4–20 mA signal with high linearity and minimal phase delay, ensuring that critical process data remains accurate and reliable. Its compact DIN-rail form factor allows high-density installation in marshalling cabinets, making the MTL5053 MTL a preferred choice for brownfield retrofits and new safety instrumented systems (SIS) alike.

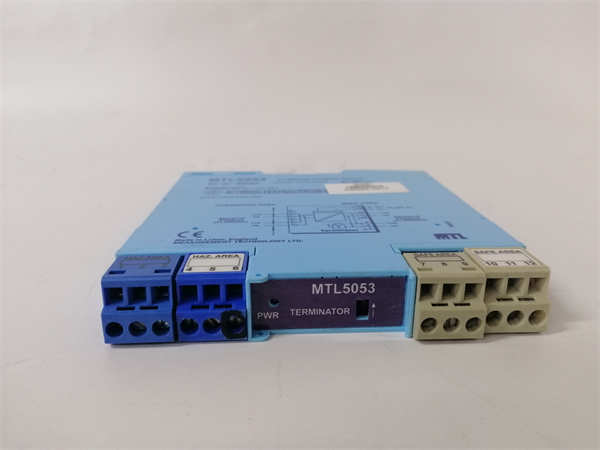

MTL5053 MTL
Core Advantages and Technical Highlights
Intrinsic safety without performance compromise: Unlike simple Zener barriers, the MTL5053 MTL delivers true signal conditioning—amplifying, isolating, and retransmitting the 4–20 mA loop while limiting energy to safe levels per IEC 60079-11. This enables longer cable runs and compatibility with both active (4-wire) and passive (2-wire) field devices.
Robust multi-layer isolation architecture: Each of the four channels in the MTL5053 MTL features independent 1500 V isolation barriers between field input, system output, and power supply. This prevents a single short circuit or surge in one loop from affecting other channels—a critical advantage in multi-variable process skids.
Universal integration across automation platforms: The MTL5053 MTL outputs a standard 4–20 mA signal compatible with virtually any analog input card from Rockwell, Siemens, Honeywell, Emerson, or Foxboro. No proprietary protocols or configuration software are needed, reducing engineering time and spares complexity.
Proven reliability in extreme conditions: Deployed globally in offshore platforms, LNG terminals, and chemical reactors, the MTL5053 MTL operates reliably under high humidity, vibration, and wide temperature swings. Its conformal-coated PCB and robust terminal blocks resist corrosion and loosening over time.
Every MTL5053 MTL we supply is bench-tested across all four channels with live 4–20 mA signals and verified for isolation integrity—ensuring it meets original MTL performance specifications before shipment.
Typical Application Scenarios
The MTL5053 MTL is essential in industries where process safety and signal integrity intersect. In offshore oil & gas production facilities, it interfaces subsea pressure and level transmitters with topside control systems, ensuring that explosive gas zones remain electrically isolated from non-hazardous control rooms. A single failure here could cascade into a major incident—making the certified safety design of the MTL5053 MTL non-negotiable.
In pharmaceutical and fine chemical plants, the MTL5053 MTL supports batch reactor temperature and pH monitoring under strict regulatory requirements. Its high accuracy (±0.1%) and immunity to electrical noise ensure compliance with data integrity standards like FDA 21 CFR Part 11. Similarly, in water treatment plants handling chlorine or ammonia, the module protects SCADA systems from corrosive atmospheres and transient surges.
Even in modern digital plants, analog 4–20 mA loops remain prevalent for critical measurements. The MTL5053 MTL bridges legacy field devices with next-generation control architectures—proving that intrinsic safety and operational excellence go hand in hand.

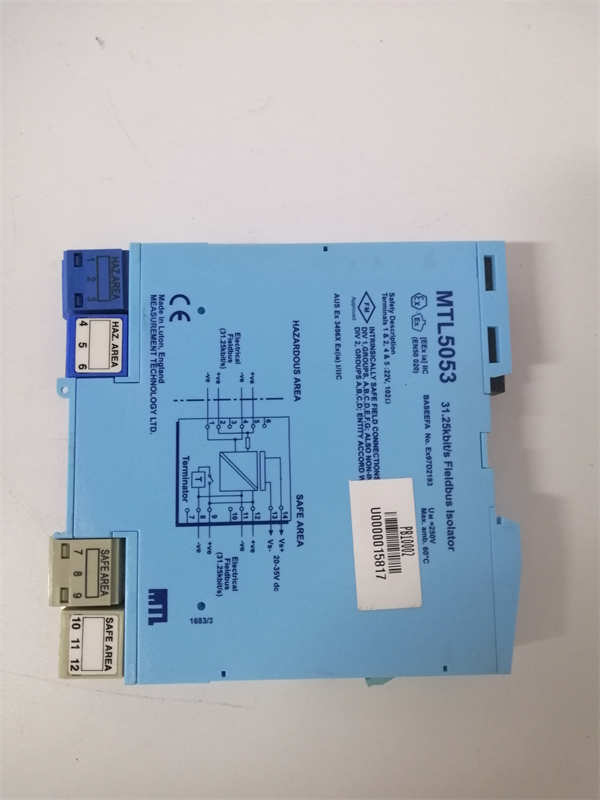

MTL5053 MTL
Related Model Recommendations
- MTL5043: 4-channel isolated analog output module (complements MTL5053 for bidirectional I/O)
- MTL5042: 2-channel version of the same technology, for lower-density applications
- MTL5532: HART-compatible version that passes digital communication over 4–20 mA loops
- MTL5000 Rack & Backplane: Required mounting system for MTL5053, providing power distribution and signal routing
- MTL7700 Series: Alternative for higher-channel-count or modular barrier solutions
- MTL4041: Single-channel isolator for applications requiring maximum flexibility per point
Installation, Commissioning and Maintenance Instructions
Installation preparation: Mount the MTL5053 MTL on a standard 35 mm DIN rail within an MTL5000-series rack that provides 24 V DC power via the backplane. Ensure field wiring (blue) connects only to the “FIELD” terminals and system wiring (gray) to the “CONTROL” side—never reverse them. Use shielded twisted-pair cables, with shields grounded at the control end only. Verify hazardous area certification matches your zone classification (e.g., ATEX II 1G Ex ia IIC T6).
Maintenance suggestions: During routine inspections, check terminal torque (0.5–0.6 Nm) and look for discoloration or corrosion. If a channel reads zero or erratic values, first verify field device power and loop continuity—most faults originate upstream. The MTL5053 MTL has no user-serviceable parts; if internal failure is confirmed, replace the entire module. Keep spare MTL5053 MTL units in climate-controlled storage to preserve long-term reliability.
