Description

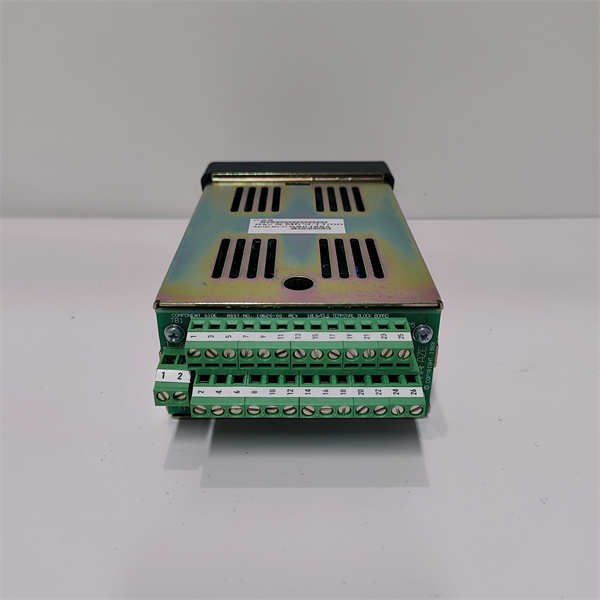

The WATLOW ANAFAZE CAS 16CLSCAS is a compact temperature and process controller from Watlow’s Anafaze series, designed for precise thermal management in industrial applications. This versatile controller provides advanced PID control algorithms in a DIN-rail mounted package, offering reliable temperature regulation for various heating processes across multiple industries including semiconductor, packaging, and plastic processing.
Application Scenarios
In a plastic extrusion line, the WATLOW ANAFAZE CAS 16CLSCAS controller maintains precise barrel zone temperatures critical for product quality. The controller receives temperature feedback from RTD sensors and executes advanced PID algorithms to modulate heater power output. During material changes, the controller’s auto-tuning feature dynamically adjusts PID parameters to maintain ±1°C stability, ensuring consistent melt viscosity and preventing material degradation. The compact DIN-rail design allows easy integration into crowded control panels while providing clear process visibility through its intuitive interface.

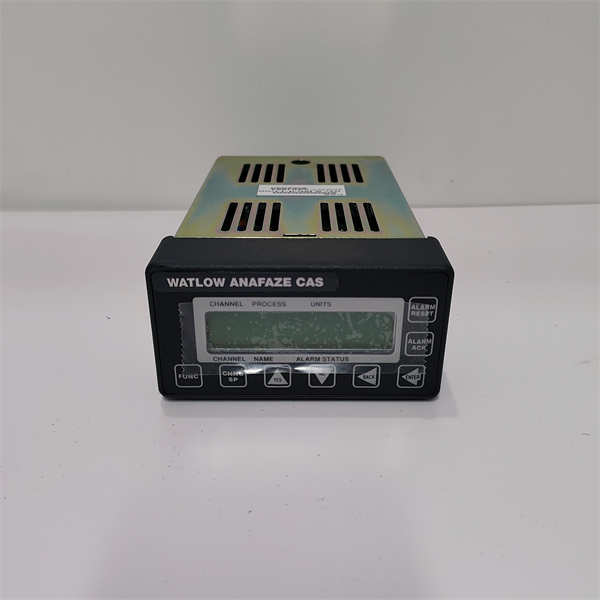

WATLOW ANAFAZE CAS 16CLSCAS
Core Parameters
| Main Parameter | Value/Description |
| Product Series | ANAFAZE CAS |
| Model Number | 16CLSCAS |
| Manufacturer | Watlow |
| Product Category | Temperature/Process Controller |
| Control Output | Relay, SSR Drive or Analog Output |
| Input Types | Thermocouple, RTD, Process Voltage/Current |
| Display | LED or LCD Display |
| Control Algorithm | Advanced PID with Auto-tuning |
| Mounting | DIN-Rail Mount |
| Power Supply | 24VAC/VDC or 100-240VAC |
| Communication | Optional Communication Modules |
| Enclosure Rating | IP20 (Panel Mounted) |
Technical Principles and Innovative Value
Innovation Point 1: Advanced PID Control Technology – The CAS 16CLSCAS incorporates Watlow’s sophisticated PID algorithms with automatic tuning capabilities. The controller continuously adapts to process changes, maintaining precise temperature control despite load variations and disturbances, ensuring optimal process stability and product quality.Innovation Point 2: Compact and Flexible Design – Despite its compact footprint, the controller offers extensive configuration flexibility with multiple input and output options. The DIN-rail mounting simplifies installation and maintenance, while the intuitive interface reduces operator training requirements.Innovation Point 3: Robust Industrial Construction – Designed for harsh industrial environments, the controller features reliable components and electrical isolation that ensure stable operation in electrically noisy conditions. The design emphasizes long-term reliability and minimal maintenance requirements.
Application Cases and Industry Value
Case: Food Packaging Sealing SystemA food packaging manufacturer needed precise temperature control for their continuous sealing system where inconsistent temperatures caused packaging failures.
- Application Process: The WATLOW ANAFAZE CAS 16CLSCAS was installed to control heating elements in the sealing jaws, with RTD sensors providing accurate temperature feedback.
- Improvements: The system achieved temperature stability within ±0.5°C, reducing packaging defects by 90%. The auto-tuning feature automatically compensated for line speed changes, maintaining seal integrity throughout production runs.
- User Feedback: The production manager reported, “The CAS 16CLSCAS controller provided the precision and reliability we needed. Its consistent performance eliminated our sealing quality issues and significantly reduced material waste.”

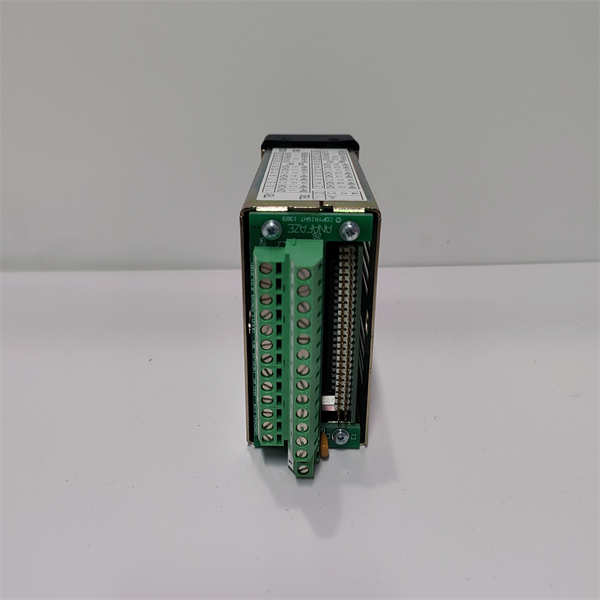

WATLOW ANAFAZE CAS 16CLSCAS
Related Product Combination Solutions
A complete thermal management solution includes these complementary Watlow products:
- Watlow F4T Controller – For more advanced multi-zone control applications
- Watlow Heating Elements – Various cartridge, strip, and ring heaters
- Watlow Sensors – RTDs, thermocouples, and other temperature sensors
- Watlow Power Controllers – Solid-state relays and power control modules
- Watlow Communication Modules – For system integration and remote monitoring
Installation, Maintenance, and Full-Cycle Support
Installation and Commissioning: The CAS 16CLSCAS features straightforward DIN-rail mounting with clear terminal labeling for easy wiring. Commissioning involves configuring input types, setpoints, and control parameters through the intuitive front interface. The auto-tuning function simplifies PID parameter optimization for most applications.Maintenance and Support: Routine maintenance includes periodic calibration verification and connection integrity checks. Watlow provides comprehensive technical documentation and support services through authorized distributors. The controller’s robust design typically requires minimal maintenance throughout its service life.
